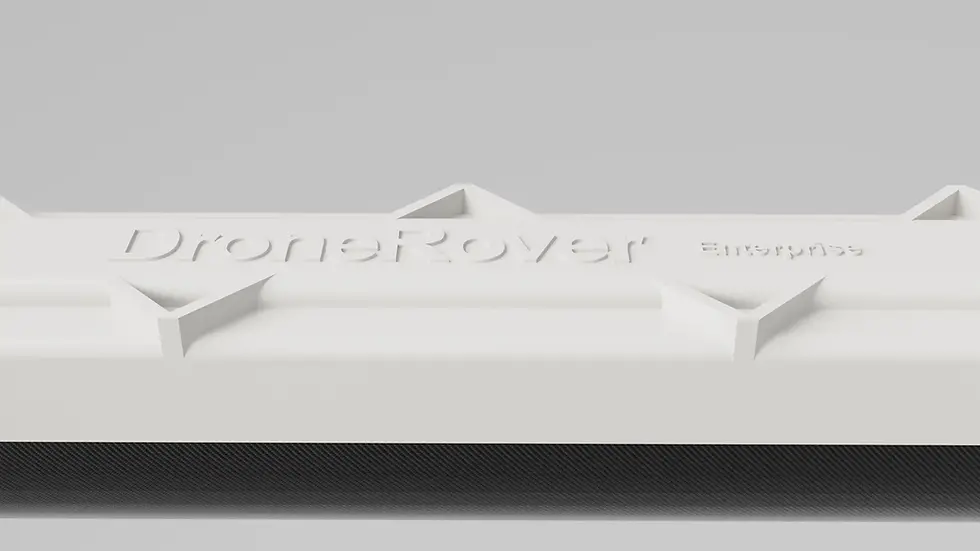

DroneRover™ Enterprise is a drone magnetometer system that utilizes five ultra-high-sensitivity sensors to collect accurate magnetic field data.
It is suitable for scanning larger or inaccessible areas remotely.
Please contact for price of the system!
Sensor Specifications:
Number of Sensors: 5 (Build in aligned 3-axis flux-gate sensors)
Measurement range: +-100uT (Optimized for best sensitivity) (Higher ranges available on request)
Distance between sensors: 0.4m
Orientation of sensors: Horizontal
Total length: 2m
Scan range: 3 to 4 ha per hour
Data Logging:
Data storage: SD card 32GB (More than a month of data logging)
Control: Start / Stop by button
Data storage format: .csv (Standard format supported by most Geo mapping software)
Data download: USB C
Logged data includes: Timestamp, GPS location and quality, magnetometer data 3-axis and vector data, IMU data
Logging rate: 25Hz (Default) (Higher rates available on request)
Sampling rate: 1kHz
GPS Positioning
GPS: Internal / Integrated into device.
Refresh rate: 10Hz
Type: Multi-band L1/L5 RTK with fast convergence times and reliable performance.
Accuracy: Centimeter-level accuracy
GPS antenna: Supplied with unit
GPS antenna cable extension: (Optional)
RTK base station signal receiver: Integrated
RTK Base station unit: (Optional)
General Technical Data
Power supply - Rechargeable batteries: 2x 3.7V 3,400 mAh
External power source: Option available on request
Operating temperature: -20°C to +50°C
Weight (Without battery): 1kg
Overall power consumption: 3W
Processing power: Dual core 240MHz
Wi-Fi: 2.45 GHz
GPS RTK Link: 433 or 915 MHz
Certificates: CE, FCC
Enclosure material: Carbon & Light plastic
