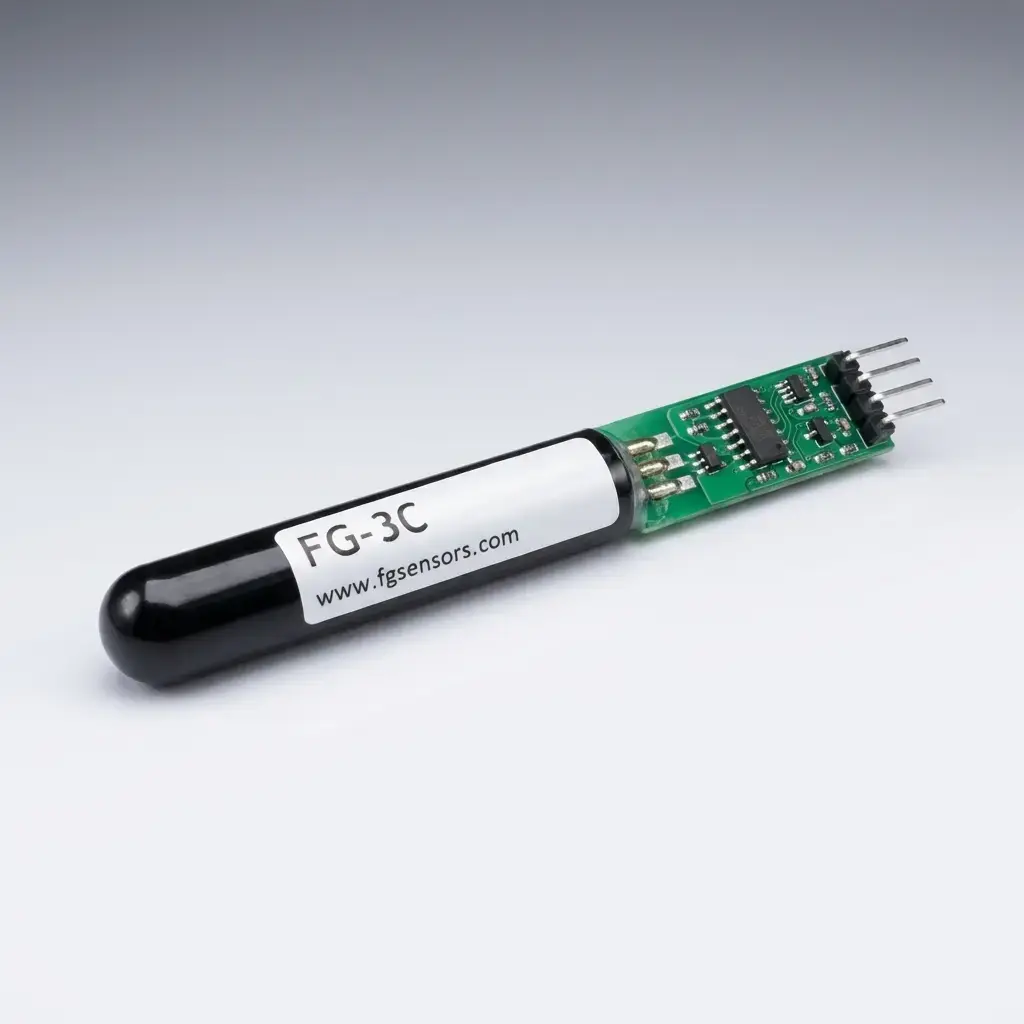

The FG-3C Magnetic Field Sensor is a fully calibrated 1-axis fluxgate magnetometer designed for precise and stable magnetic field measurements in industrial, research, and embedded applications.
It delivers linearized, temperature-compensated magnetic field data directly in nanotesla (nT), eliminating the need for external calibration or complex correction algorithms.
Each sensor is individually factory-characterized to ensure consistent accuracy and repeatable measurements. With multiple output interfaces including UART, analog voltage, and frequency/PWM, the FG-3C easily integrates into modern microcontroller systems as well as legacy measurement setups.
Whether used in geomagnetic monitoring, industrial sensing, or scientific experiments, the FG-3C provides reliable and easy-to-use magnetic field measurement in a compact and efficient design.
Key Features
Factory-calibrated & linearized output – No external calibration required
Direct magnetic field output in nanotesla (nT) for easy system integration
Temperature-compensated measurements for stable long-term performance
Wide measurement range: −60 µT to +60 µT
Multiple output interfaces: UART, analog voltage, and PWM/frequency
Backward compatibility with legacy FG installations
Reliable fault indication for system diagnostics
Fast update rate: 10 Hz (100 ms refresh interval)
Typical Applications
Scientific magnetic field measurement
Geomagnetic monitoring
Industrial sensing systems
Embedded and microcontroller-based measurement devices
Research laboratories and experimental setups
Basic Specifications
Magnetic field range: −60 µT to +60 µT
Supply voltage: 5 V DC ±0.25 V
Current consumption: ~35 mA
Outputs: UART, analog voltage, frequency/PWM
Standard data refresh rate: 10 Hz (100 ms)
