DIY 3 Axis Gradiometer Kit
A 3-axis flux-gate magnetometer logger with SD card storage, UART and USB serial output, and GPS receiver + 1X Bartington 100 MAG-649 | 3-Axis Magnetometer Sensor

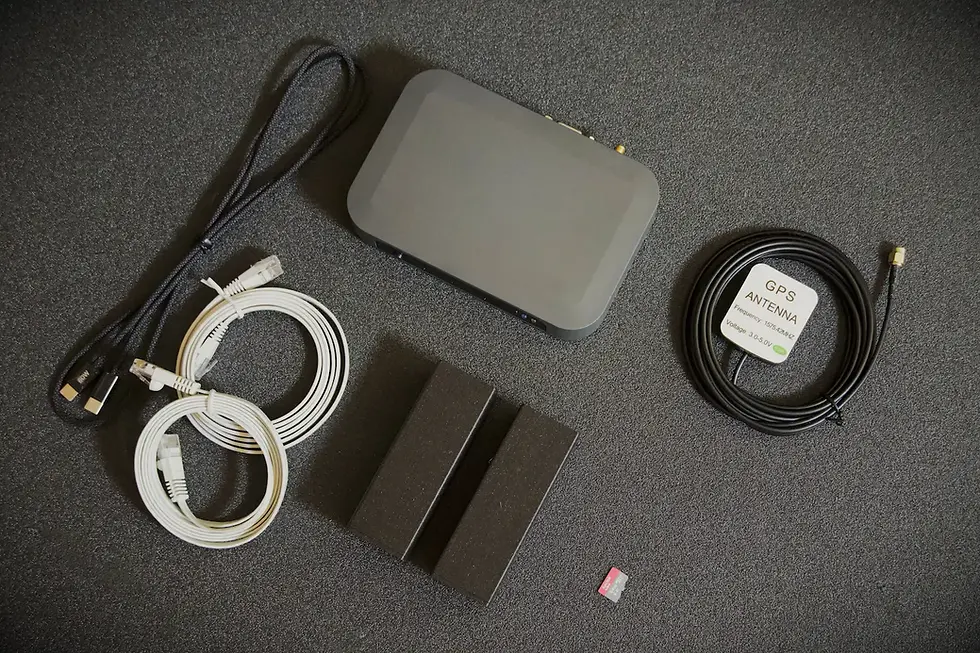

What is in the package:
- FGA DataLogger Unit
- GPS Antenna
- USB C Data / Power Cable
- DB9 connector for UART and Power
- SD Card (32GB)
- 1 or 2X Bartington100 MAG-649 | 3-Axis Magnetometer Sensor
- 1 or 2X RJ45 Ethernet Cable
Key Features:
Dual Magnetometer Support Connects up to two 3-axis flux-gate magnetometers for simultaneous, multi-point magnetic field data acquisition.
Integrated High-Sensitivity GPS The built-in GPS receiver provides accurate geolocation data, enabling precise mapping and correlation of magnetic field measurements with position.
High-Speed Data Logging Logs magnetic and GPS data at up to 10 Hz, ensuring detailed temporal resolution for dynamic surveys and moving platforms.
Flexible Data Storage & Output SD card slot for high-capacity, removable storage of raw data. Real-time UART & USB serial output for direct data streaming to external systems or telemetry modules.
Modern Connectivity USB-C port allows direct access to SD card contents for rapid data transfer
User-Friendly Operation Dedicated start/stop button for intuitive control, with LED status indicators for logging and power and GPS status.
Seamless Software Integration Data format fully compatible with popular processing software (Excel, Matlab, Python, Surfer).
Direct upload to the PolarWave - DATA™ app for immediate data review, visualization, and advanced analysis.
Factory calibration Each logger is factory calibrated to provide accurate and precise measurements.
Click here to view Logger Datasheet
Click here to view User Manual
Bartington UB 100 MAG-649 | 3-Axis Magnetometer Sensor by Bartington - Ready to connect with FGA Logger. Low Power Three-Axis Magnetic Field Sensor
*Compliant with FGA Logger and PolarWave™ Data.
- It comes with 1m RJ45 Cable.
Key Features:
Low power <15mW consumption Low noise version <10pTrms/√Hz at 1Hz Bandwidth To 1kHz Measuring range ±100μT
Applications
Incorporation in surveillance systems
Magnetic field measurements in remote locations
Multi-sensor magnetic signature ranges
Vehicle monitoring
